|class:||A2 pressure vessel||certification:||ASME|
|door opening:||hydraulic pressure||saddle:||fixed and moveable|
|origin of certificate:||provided||user manual:||provided|

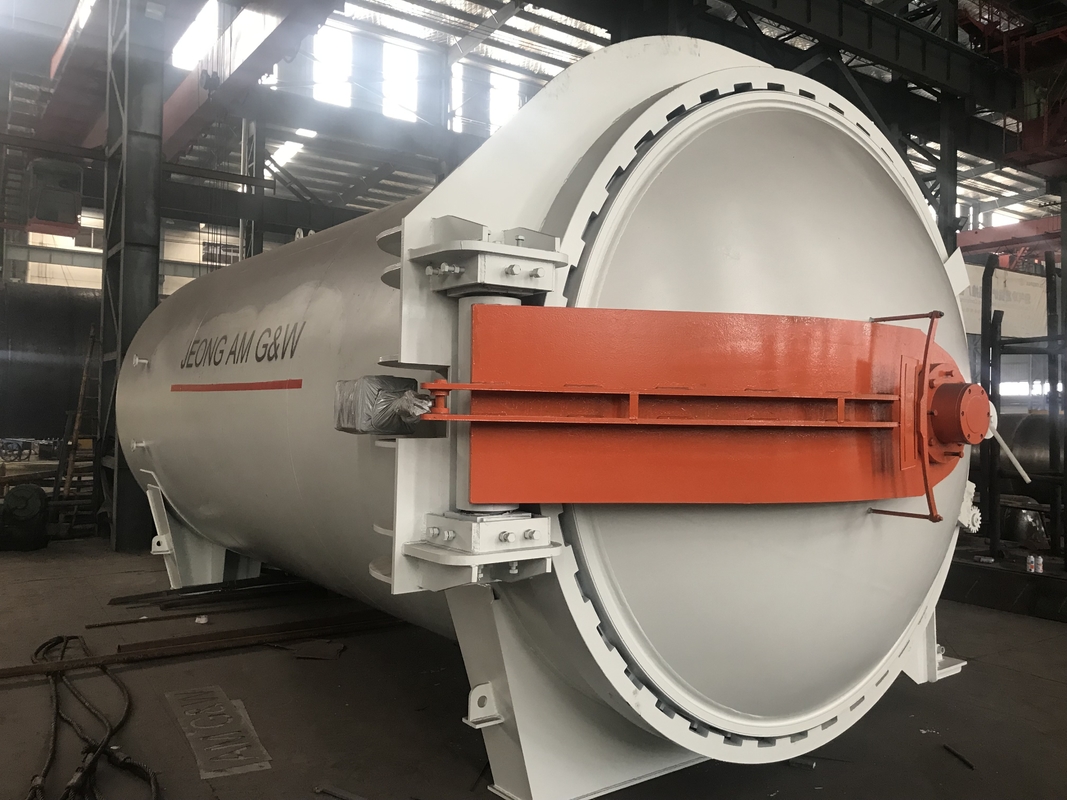

laminated glass autoclave,
A2 Pressure Vessel Class Glass Laminating Autoclave With Real-Time Data Monitoring
Glass autoclave (Series of SN-BGF-J)
heating ways:steam heat ,thermal oil heating ,elecricity heating ,electric heating air
temperature :150-450 degree
length: any length is ok
safety device:automatic discharge pressure ,automatic feed water ,automatic alarm, the door has double safty interlock device
First filling the retort with a small amount of process water and the water level is maintained below the basket bottom level. Then the process water is drawn from the bottom of the retort by a high capacity circulation pump and spray from nozzles located along the top and sides of the retort.
Simultaneously the steam valve opens and the steam is introduced into the retort through the steam spreader on the bottom of the retort directly heating those process water spraying from nozzles and making the temperature inside retort evenly.
And when the temperature inside retort reaches the programmed sterilization temperature, it will be kept during the sterilization process. At the same time the pressure in the retort also will be kept by adding or venting compressed air as needed.
Finally the cooling water through heat exchanger will continually make those sterilization water cool down until the sterilization process is finished.
Suitable for photovoltaic package.
Unique TPC system software based on PLC control sysytem to get a stable and safe one-button operation;
Direct connection convection system with high stability and safety to prevent air and oil leakage;
U type forced convection structure to get uniform heating and cooling process,and a rate of final products;
Inconel tubular heaters with a long working life adn high heating exchanging rate. The heating period can be adjusted to save energy;
The door is driven hydraulically at site. It is stable and safe;
Various of loading reolley will be designed according to customers' requirements.
|model||inner diameter||length||glass size||design/working pressure||design/working temprature||heating power|
ADVANCED AUTOCLAVE SOLUTION SUPPLIER
OLYMSPAN is located in hometown of autoclave-Changzhou,Jiangsu,China. It is a leading high-tech enterprise specialized in providing advanced autoclave solutions. Olymspan autoclave with excellent performances are widely used for composite curing,safety glass laminating,PV module encapsulation,wood carbonization.rubber vulcanization,medical waste treatment and so on.
Since the establishment, we have always devoted ourselves to the innovation of autoclave and its control system. Now our Thermal Processing Control(TPC)software,designed according to aviation level,has been able to meet the most strigent technological requirements and the operation performance is safe and stable. Our goal is being the leader of autoclave and its control system.
Customizable specifications to meet customers' different demand;
Meeting various standard like GB150,ASME,PED,AD-2000 and so on. The autoclave comes with relative certificates.
A professional team of engineers working on electrical,mechanical,control and software development departments. The software is updated continuously to meet customers' requirements.
Response time will be shorter than 24 hours and we will try to make the production safe and stable.
Features of TPC control system
Multi device control
Why choose us?
Our ram material is national goverment pointed facmous steel factory ,and standard pressure vessel special plate ,Q345R .Each steel is tested before leaving factory .It have good bear pressure
Heating area is uniform ,according to your working technology to design inside heating system ,we have special design heating sink ,,it is arranged in the up side ,bottom ,left side ,right side ,
Adopt external insulation ,the galvanized sheet is welded around the tank (it wont rust within 10 years),inside are 80mm insulation cottom ,heat insulation head add 60mm thermal insulation , then add fixed bolt .To make inside heating value can be used enough ,and reduce consumtion , save cost . and it is easy for transportation.
